Design Intention

Main Generators:

Attachment:
Relationship of:
Child-Adult-Community
Green Area to Urban Context
Shak to Informal settlement

Family:
Summarised Precedent Studies:
Similar structures housed/binded by a element-
it is seen in my design where the roof binds services in creche building

Respect:
Admin Building pays respect to Surrounding vernacular architecture of site

Break-away:
Creche/Community Building breaks away with classrooms popping out from binding element
popping out roof element-child
binding roof element-adult
platform-community

Final Model

Conceptual Model 1: Attachment and Break-away

Attachment and Protection

Model 3: Attachment and orientation

Model 3: Attachment and Growth on site

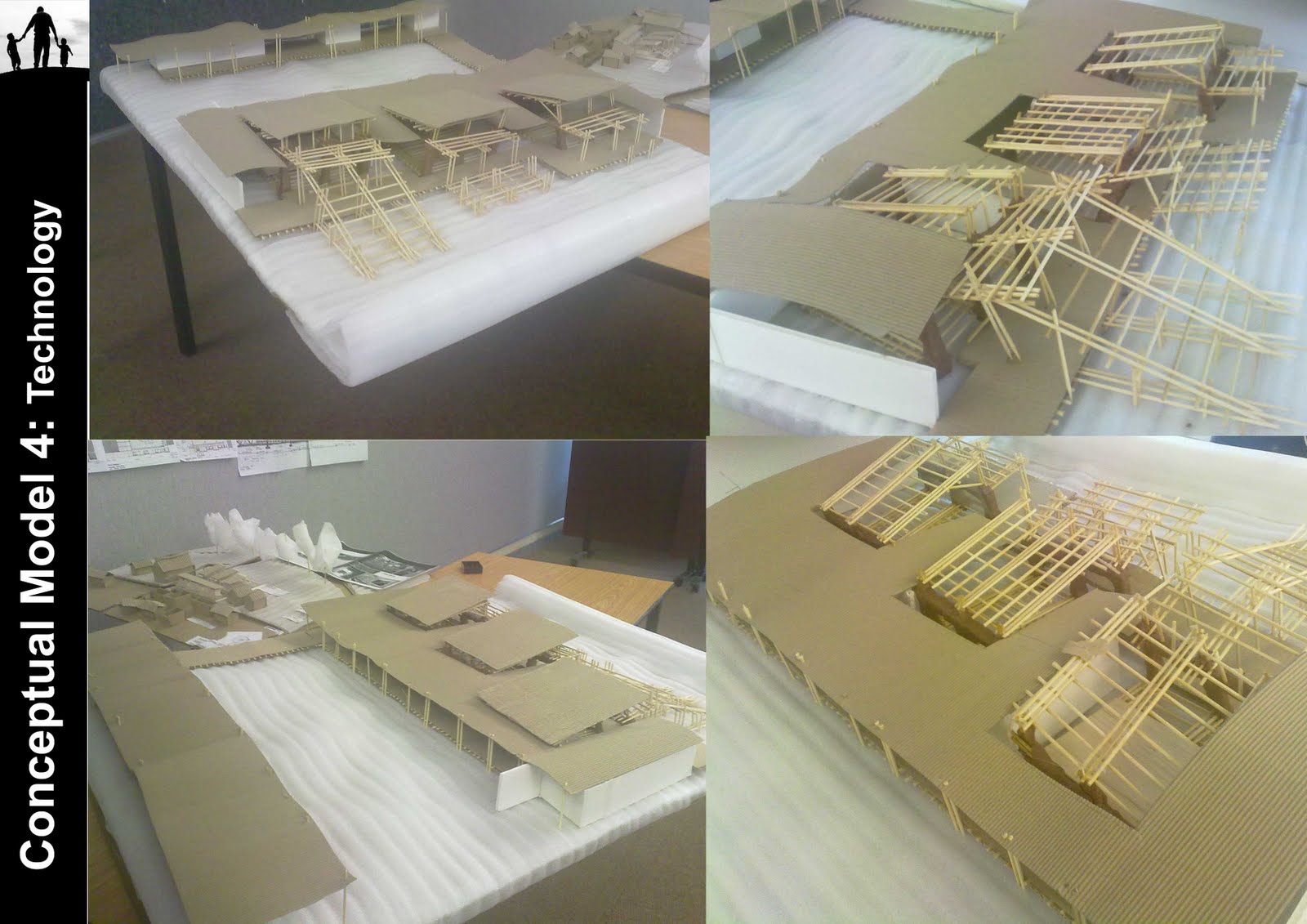

Model 4:Technology

Technology:

Timber structure-Primary Structure

Adobe Mud Bricks-Wall Enclosure

Platform-Timber floorboards

Supporting platform-sleeper walls with timber joists

Sustainability

Precedent Studies

Family:
Main Principle
derived from main precedent studies are structures which are individuals which are housed by a binding element
Supporting Precedent:
Delft Creche-creates a courtyard with structures providing protection
Play Precedent- Exploration of space through a childs perspective

3 Dimensional View

Section and Elevations

Proposed Floorplan

Protection:

Services create a Protection for main spaces,it encloses sides of building and creates an open courtyard in centre

Admin Building:

Small spaces pays respect to surrounding street buildings (scale and proportion)has voids opening up from street-only used on big community events,but will remain closed if on normal day

Creche/Community Building:

breaks away,movement based on orientation of north sun

Client and Site Analysis

conceptual diagram
